JATCO Inc., Manufactures environmental solutions for the oil and gas production and transportation industries. Solutions include cost effective, and reliable equipment designed for atmosphere, water, and soil pollution prevention.
JATCO Inc., are specialists in: Air Cooled Condensers, BTEX Systems, Bundle Condensers, Tube Condensers, Vapor Recovery Systems, and Vapor Separators.
COST-EFFECTIVE, ENVIRONMENTAL SOLUTIONS
At JATCO, we are not environmental activists, rather we are active environmentalists. Every product exiting our door is saving our environment globally! We continually strive for better pollution control systems while allowing our customers to continue production of vital energy resources. We do this by providing the best environmental solutions for transportation industries and oil and gas production. Soil, air, and water pollution prevention is paramount to what we do.
Our planet’s future is at stake!
BTEX Systems Units
Air Cooled Condensers
Shell & Tube Condensers
JATCO Vapor Recovery Systems
JATCO BTEX Eliminator Guarantee
The system operation of the JATCO BTEX “Eliminator” is able to achieve stack test results in excess of 95% destruction efficiency by routing the pre-condensed still column vapors to the main burner and inducing the low pressure V.O.C.s into the primary air inlet of the original burner using our patented JATCO compound injector burner assembly. When re-boiler temperature is reached, a valve stops the V.O.C. flow to the main burner and opens to route the V.O.C.s to the exhaust stack, through the igniter (to be installed with unit). The igniter consists of a stainless steel nipple with a nickel alloy wire coil. As the main burner is on its firing cycle, the exhaust gases keep this coil red hot by cumulating heat in the fire tube. After the main burner shuts off, and V.O.C.s are routed to the exhaust stack, the coil will ignite or flash the vapor for a period until there is free air oxygen dilution. The actual stack testing will show burner/on burner/off cycles and concentrations. It is also a note that general operation of standard glycol re-boiler dehydration, when the burner is on is when you achieve the flash/flux around the fire tube and when it shuts off the V.O.C output from the still column diminishes rapidly.
JATCO Environmental Inc. stands behind all of the testing performed on our BTEX Systems Units and will purchase any unit back that does not perform to these standards.

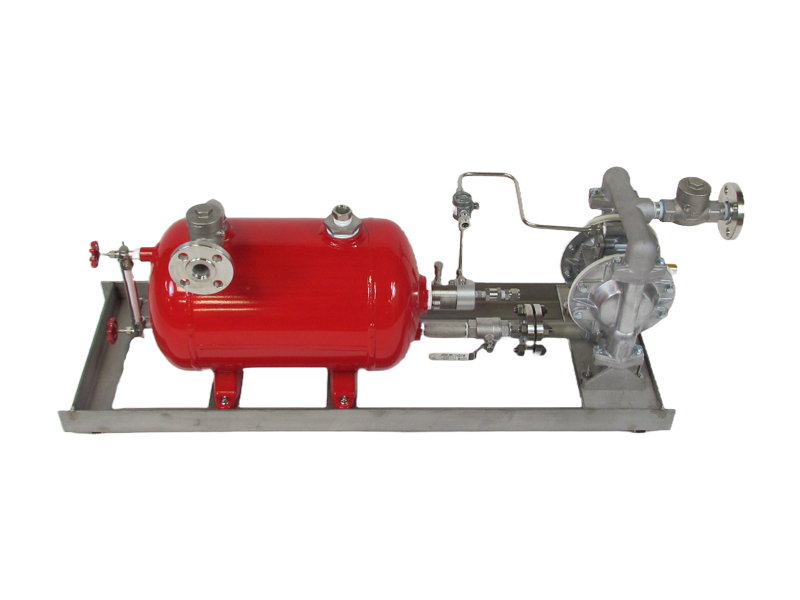

The J-5000cx is a 10 gallon tank and will handle 310 gph, and can be configured to meet any standard or application you may need. (more)

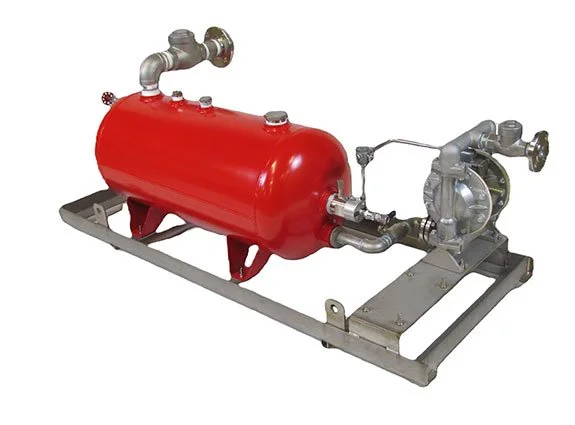

The J-7000 is a 30 gallon tank with a capacity of 1400 gph, and can be configured to meet any standard or application you may need. (more)

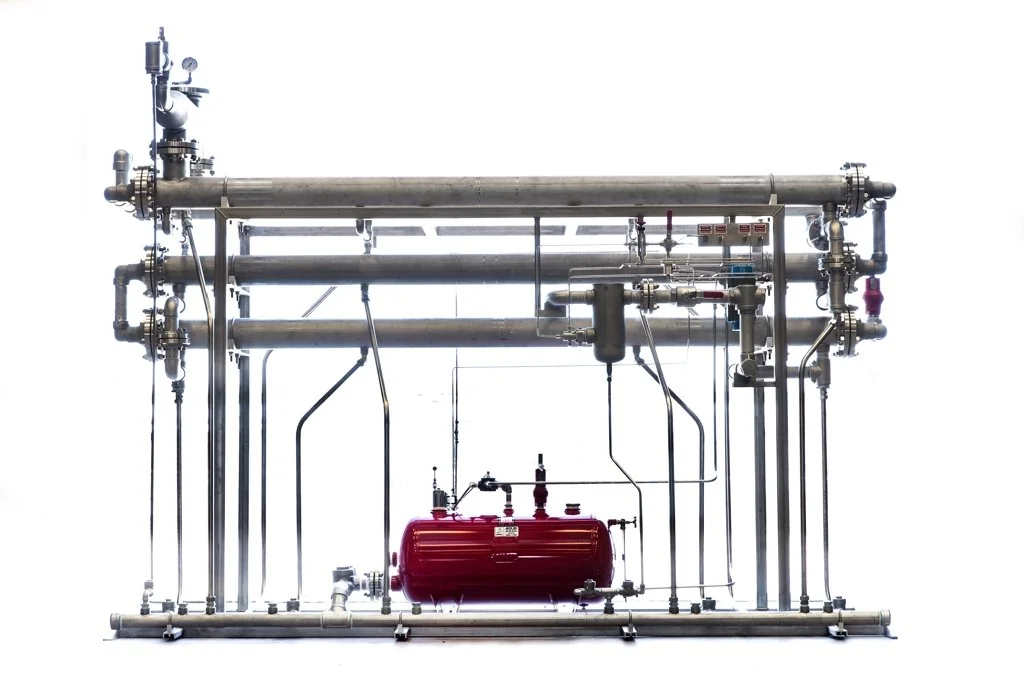

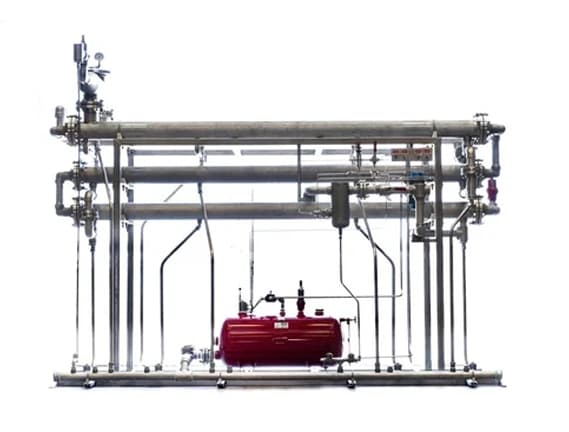

BTEX Eliminator Shell & Tube System
The Shell and Tube Eliminator System is a counter flow stainless steel tube and bundle heat exchanger condensing system used to capture and recycle BTEX and VOC vapors from the dehydrator still column. (more)

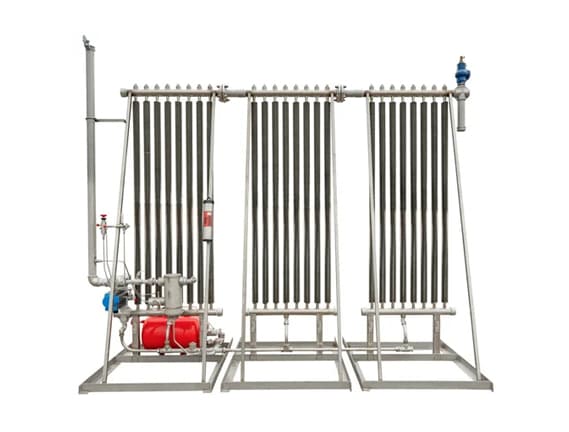

BTEX Eliminator System I, II, III
The Jatco BTEX Eliminator System is a natural air cooled heat exchanger condensing system used to capture and recycle BTEX and VOC vapors from the dehydrator still column. (more)

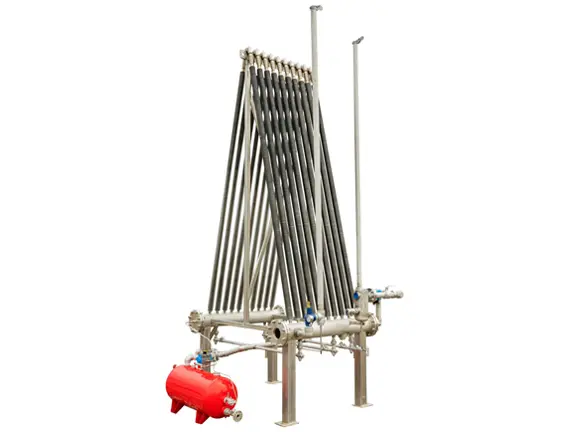

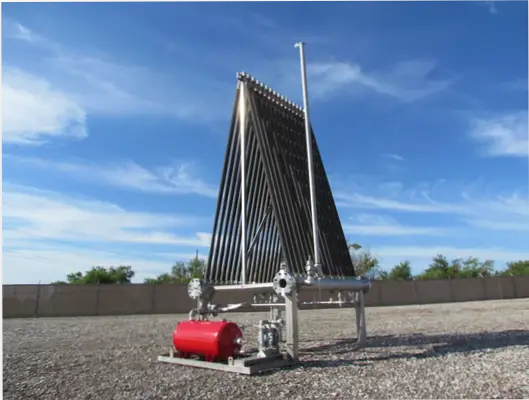

BTEX Eliminator A-Frame System
The JATCO A-Frame style BTEX Eliminator System is a natural air cooled heat exchanger condensing system used to capture and recycle BTEX and VOC vapors from the dehydrator still column. (more)
